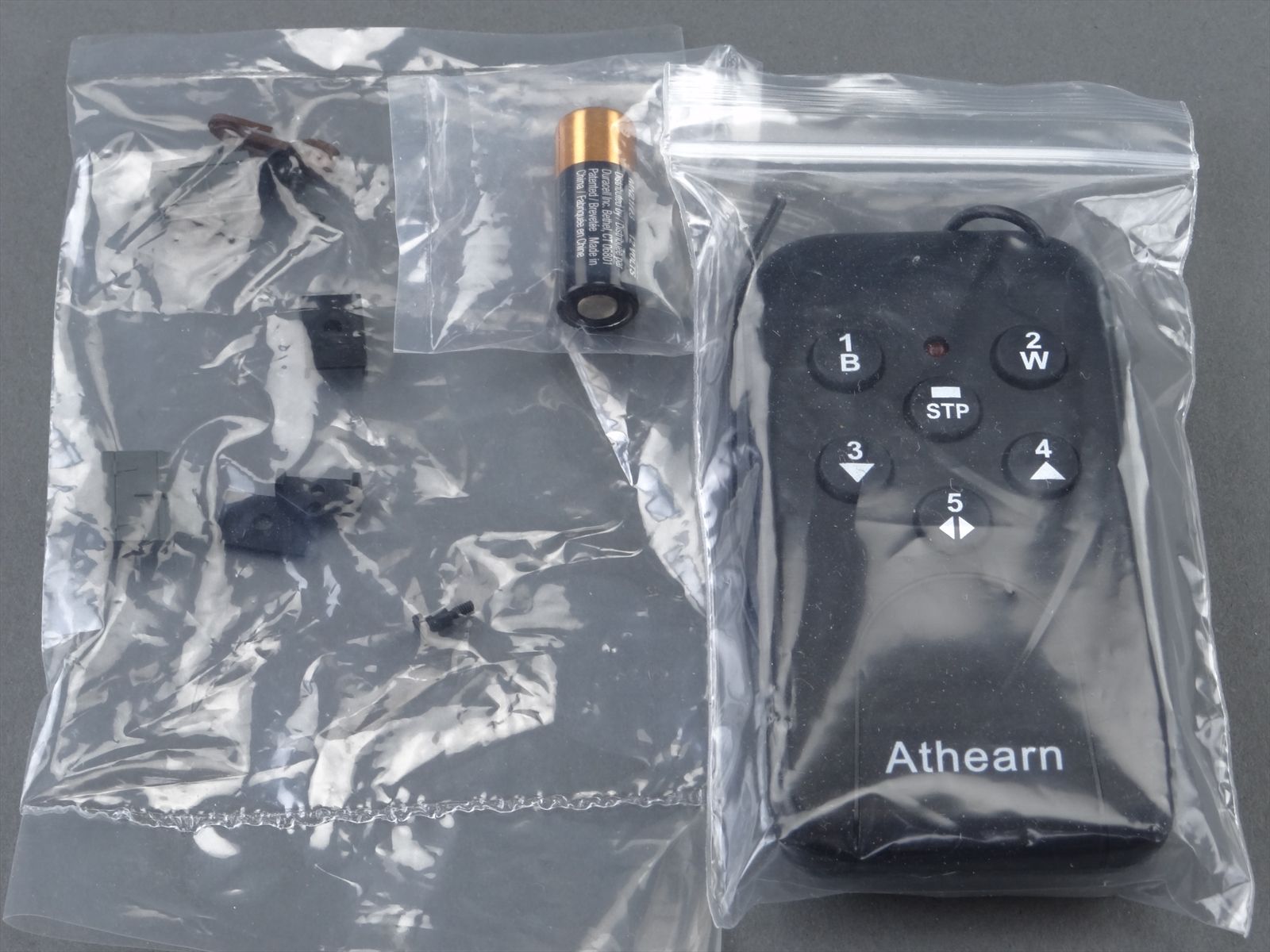

NOTE:   Model operates beautifully in DCC.  Model runs in DC using remote control (battery included).

• Boiler backhead with full details and printed manual controls.
• Individually applied detail parts such as piping, valves, generators, etc.
• Blackened metal RP25 wheels.

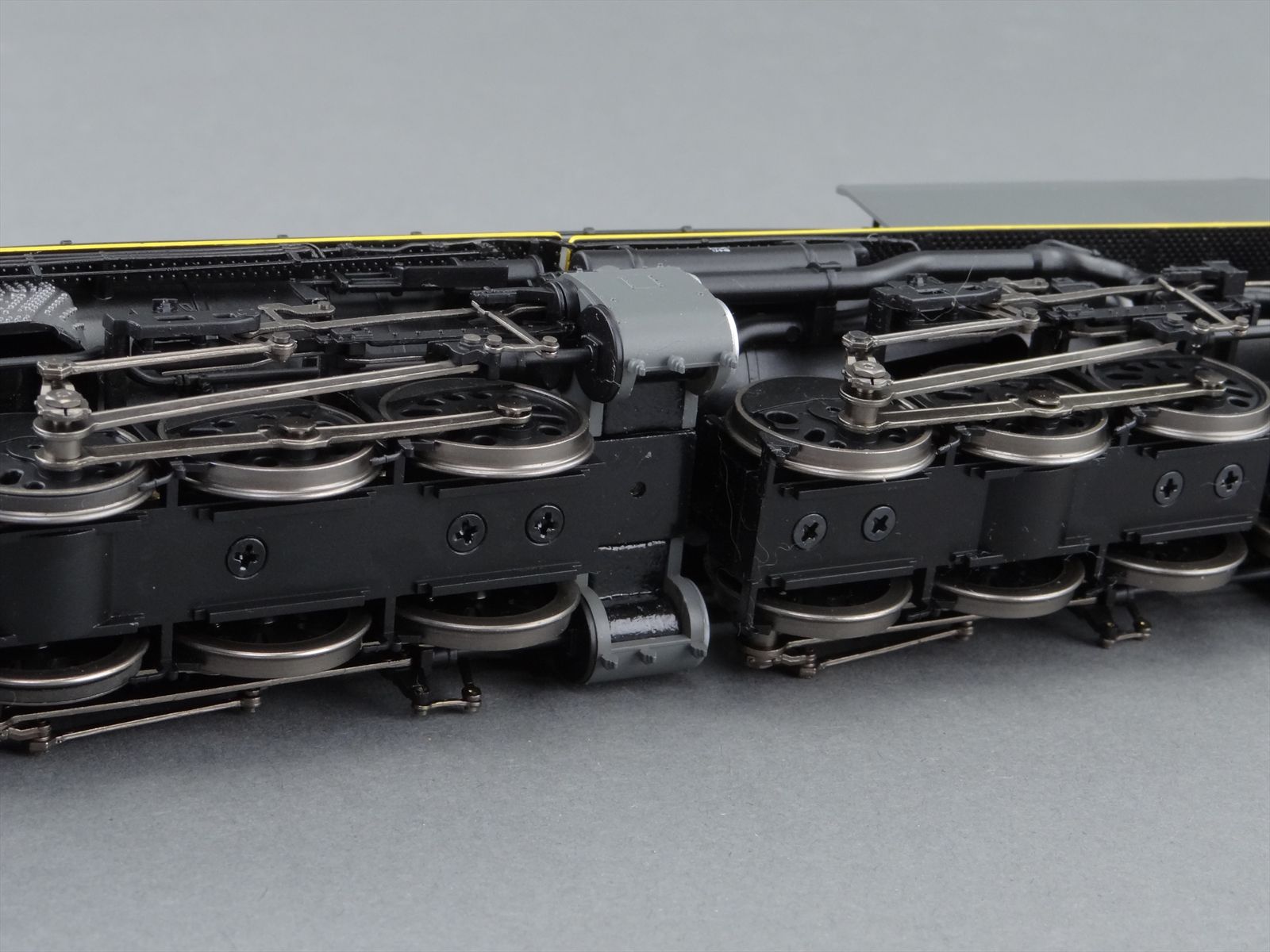

• Eccentric cranks operating on both sides in correct direction.
• Minimal compromise on wheel diameter (about 1” only).
• Front and rear engines (cylinders and coupled drive wheel sets) both pivot in order to manage 18” radius curves.

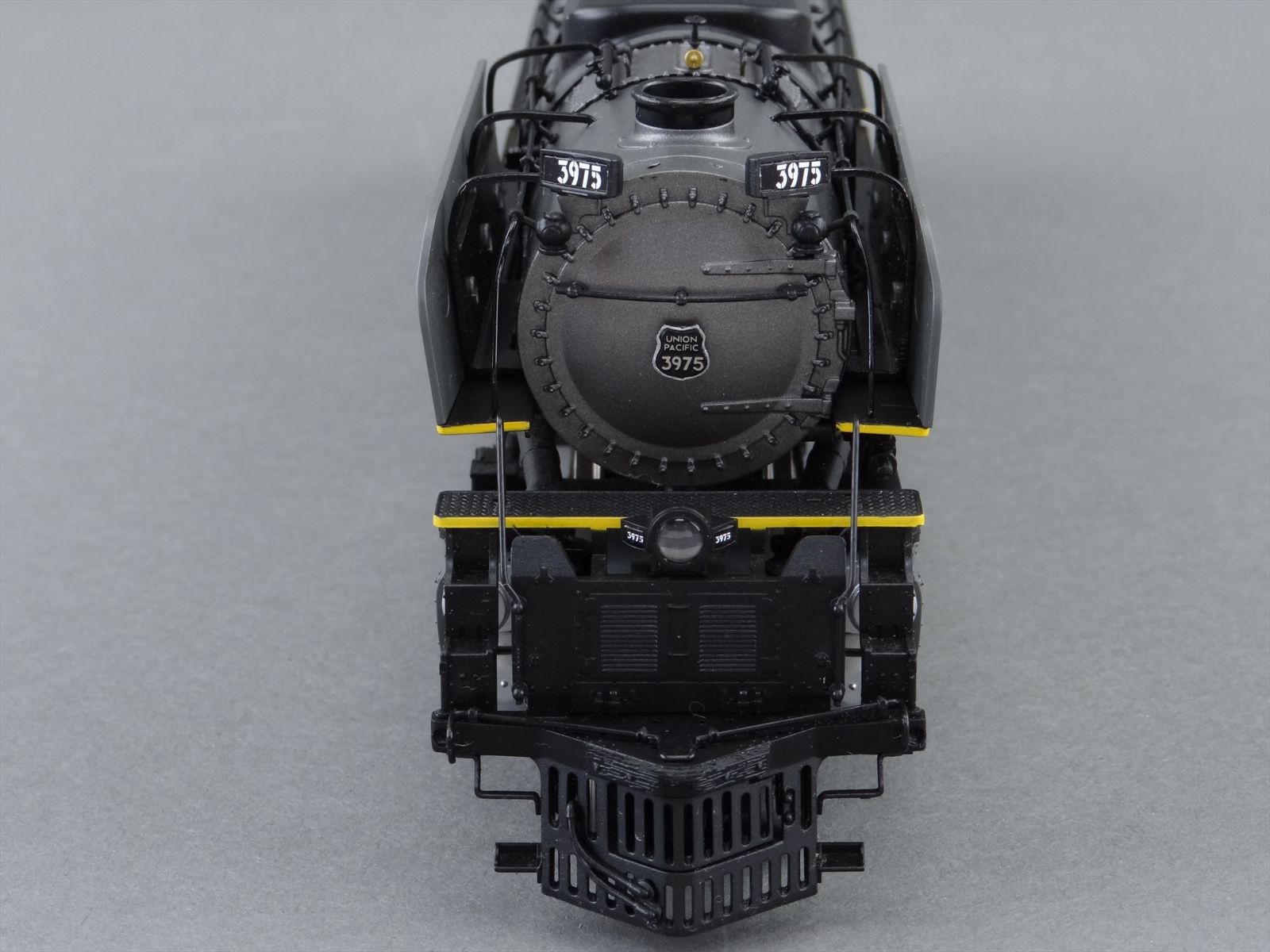

• Pilot has open/closed positions. Coupler pocket can be inserted to mount coupler.
• Adjustable cab windows.

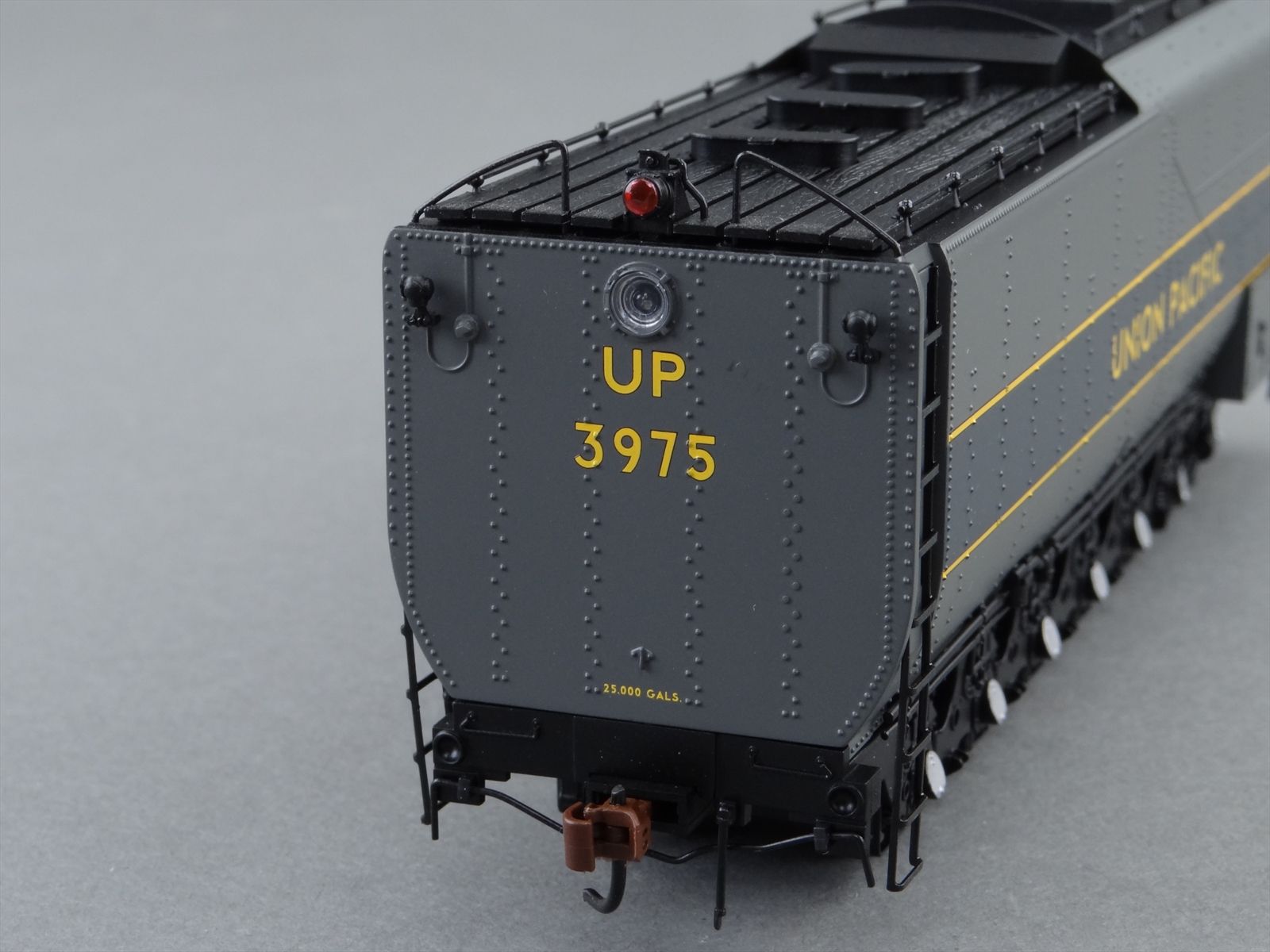

• Headlights and tender lights have directional light change, while the number boards are permanently illuminated.
• Five-pole, skewed armature motor with two flywheels with very smooth-running features.
• Cab hatches can be either closed or open.
• See-through running boards.
• Each undecorated version includes all parts for that specific version.
• Locomotive is smoke-unit-ready. No soldering needed.

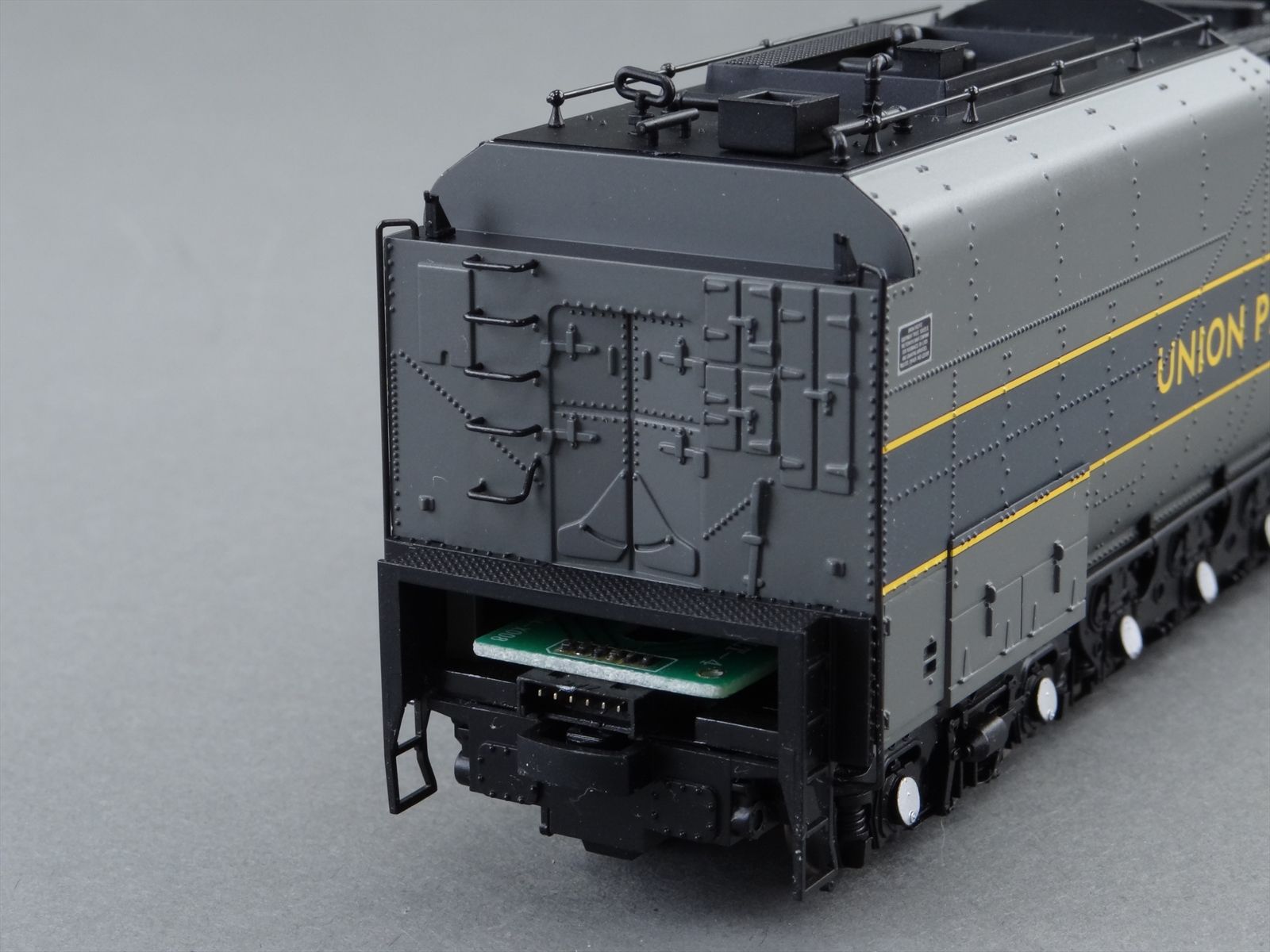

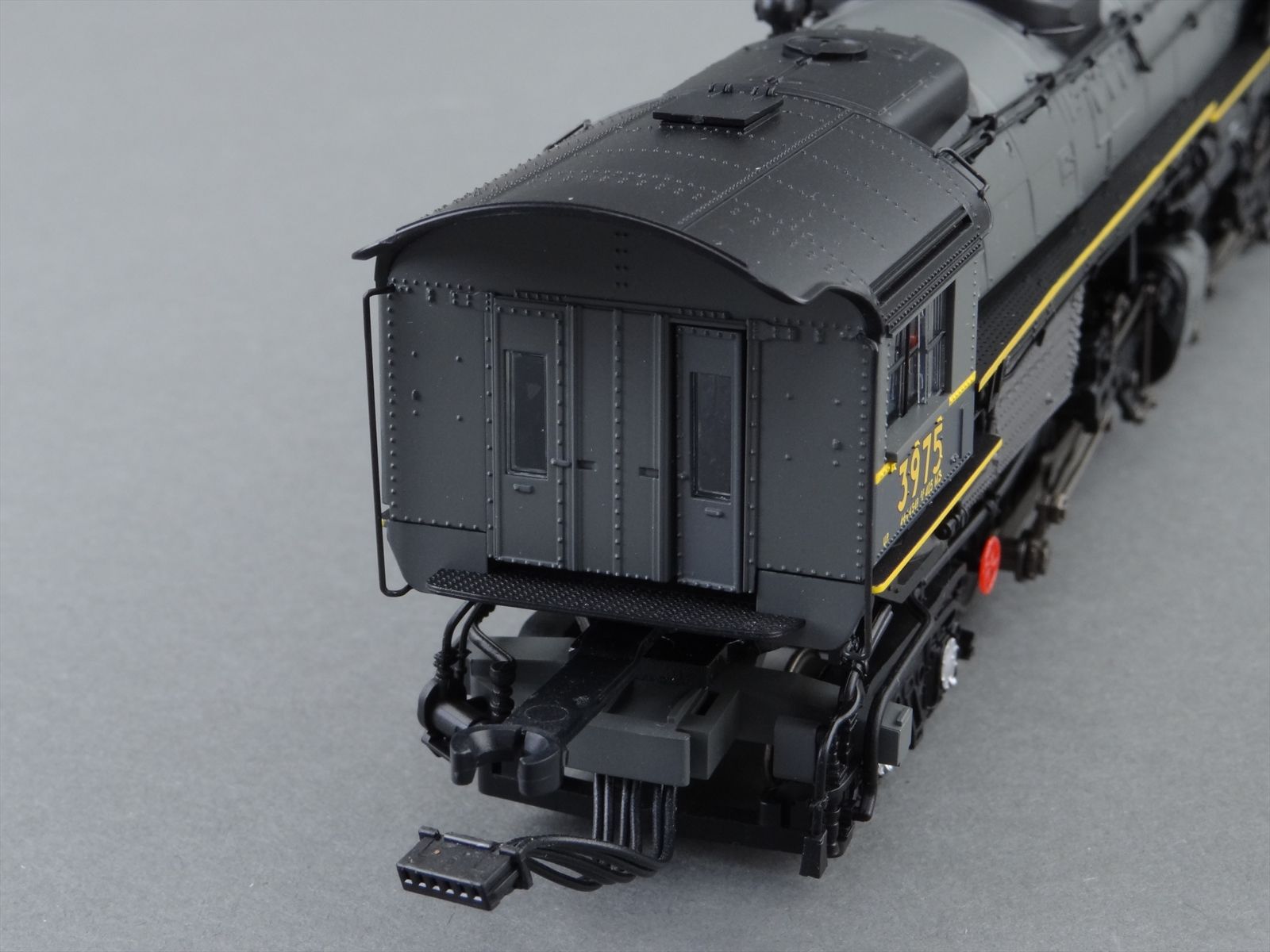

• 6-pin connector plug between loco and tender.
• Current pick-up on all 12 driver wheels and 8 tender wheels.
• Consumer-friendly disassembly features for spare part replacement.
• Detailed instruction sheets with exploded view drawings and history booklet.
• Cabin is closed with opening door feature, or model has open cabin.

DCC Features:

The decoder provided with the GenesisTM Challenger
Locomotive will operate with any NMRA compatible DCC
system. The default setting is address 3. The decoder is rated
at 2 amps and will support either 2 or 4 digit addresses. The
decoder functions are fully programmable by the adjustment
of CVs. A CV table is included in the operating instructions.
Either 14 speed steps or 28/128 speed steps are supported by
this system. Available accessory and sound functions are as
follows:

• Directional Lighting • Bell
• Whistle • Air Release
• Coupling • Brake Squeal
• Conductor’s Voice • Fire Box Door
• Sound On/Off • Sand Release
• Water Injector • Blower Hiss
• Cylinder Cock/Flange squeal

In addition to Function Ø (Directional lighting) there are
twelve additional sound functions to allow the operator to
capture the full range of unique sounds found on an operating
steam locomotive. You can now fully immerse yourself in the
complexities of prototype operation and add a new level of
realism to your railroading experience.
